SPECIFICATIONS

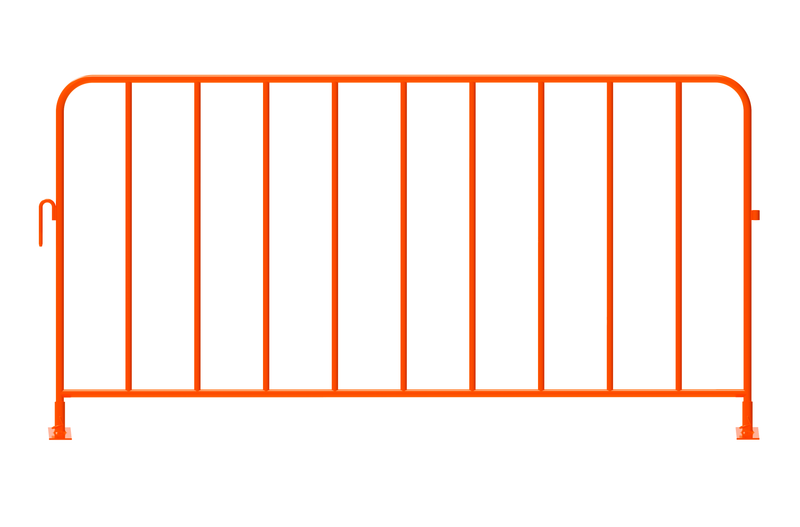

Panel: 900mm x 2400mm, 2 hooks welded on both sides, NB 25 Frame, 20 vertical pickets fully welded before galvanized
---Frame Length: 2400mm ( linear 2500mm when hooked together)
---Height: 900mm high fence on 200mm high stand, total height 1100mm
---Bolt on Replaceable Flat Bases
---Hot Dip Galvanized after fully constructed
---Inserted & Welded Uprights
Application: Events,sports, concerts,festivals, gathering etc.
Code | Height | Length | Pipe OD | Bar | Bar Spacing | Surface Treatment |
CCB1124 | 1.1m | 2.4m | 32mm | 9 | 16cm | Hot Dip Galvanized |
CCB1121 | 1.1m | 2.1m | 25mm | 12 | 18.5cm | Orange Painted |
SPECIFICATIONS
Panel: 900mm x 2400mm, 2 hooks welded on both sides, NB 25 Frame, 20 vertical pickets fully welded before galvanized
---Frame Length: 2400mm ( linear 2500mm when hooked together)
---Height: 900mm high fence on 200mm high stand, total height 1100mm
---Bolt on Replaceable Flat Bases
---Hot Dip Galvanized after fully constructed
---Inserted & Welded Uprights
Application: Events,sports, concerts,festivals, gathering etc.
Code | Height | Length | Pipe OD | Bar | Bar Spacing | Surface Treatment |
CCB1124 | 1.1m | 2.4m | 32mm | 9 | 16cm | Hot Dip Galvanized |
CCB1121 | 1.1m | 2.1m | 25mm | 12 | 18.5cm | Orange Painted |
